Auxiliary Output

Offers dry relay contacts at door limit positions, lamp output contacts and selectable ADA output to sound a horn/light.

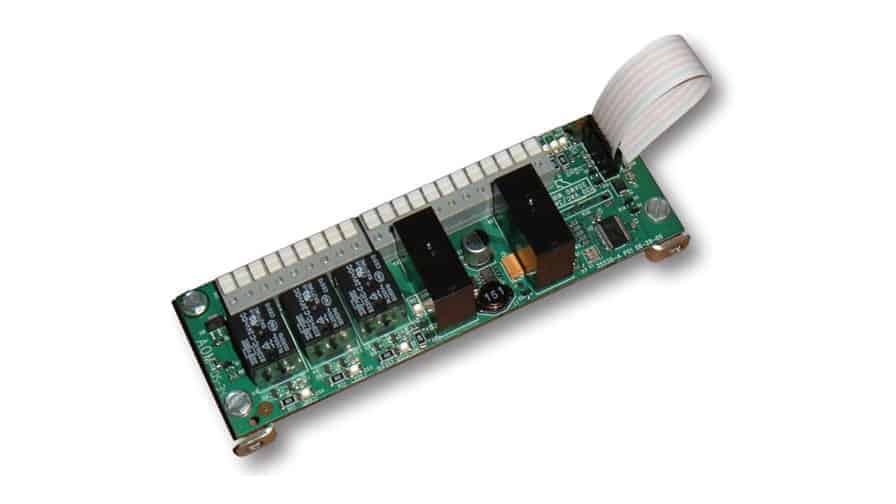

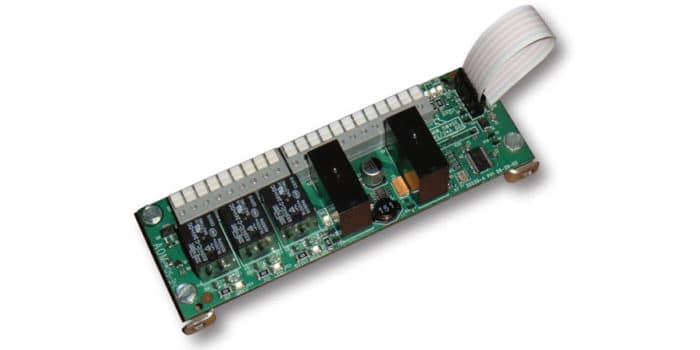

The Auxiliary Output Module for our X-Series commercial operators offers the integrate other devices such as lights, horns, and other monitoring systems. The component board provides dry relay contacts at door limit positions and lamp output contacts. It also recognizes output deemed applicable to the Americans with Disabilities Act such as a horns or flashing lights. The module is installed in the operator electric box and connects to the main circuit board through an expansion port connector.


  • Allows for integration into other devices (lights, horns, monitoring systems).
  • Multiple relay contact points (up limit, down limit, mid-stop limit).
